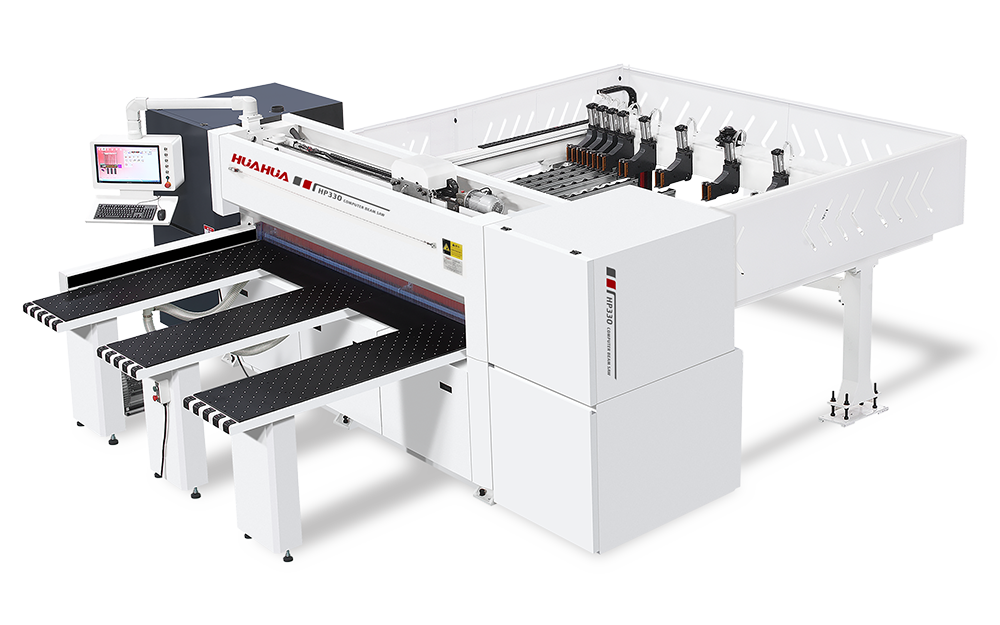

HP330 Beamsaw
Description

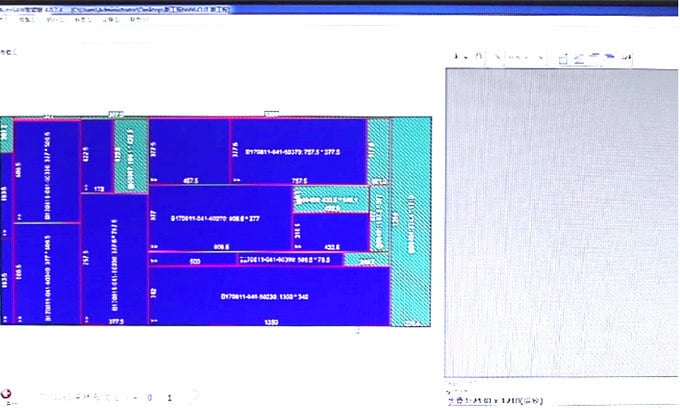

The HP-330 Beam saw is a heavy duty front loading machine with a 3.3m cutline. this machine is a fabulous specification for panel dividing which comes complete with optimisation software for hassle free programming.
-
18.5kw Main Motor
Main blade diameter is 380mm (optional 450) driven by a heavy duty 18.5kw 3 phase motor.
-

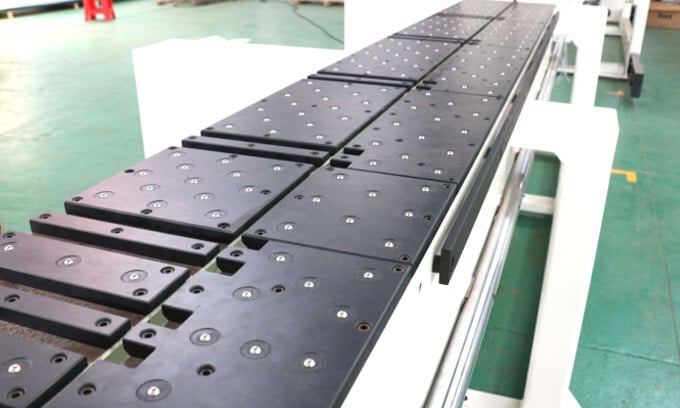

3 Air Tables
Material handling is easy with 3 tables.
-
120mm Depth of cut
The machine is capable of cutting 120mm stack height boards. Allowing efficient cutting with multiple sheets.
-
Main Blade
380mm x 75mm Bore
Optional 450mm
4000 RPM
-
Scoring Blade
200mm x 50mm
5200 rpm
-

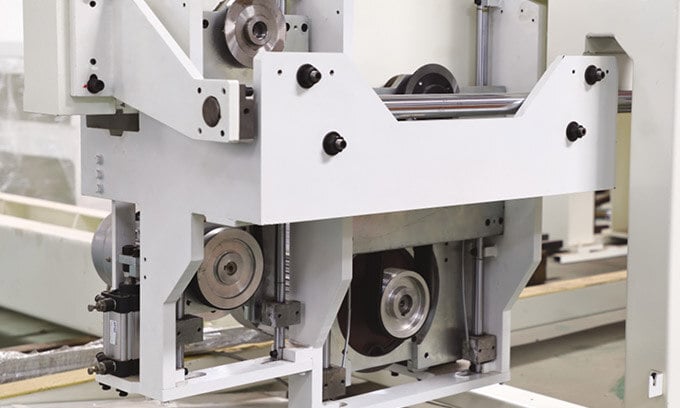

Saw Carriage Speed
Forward Traverse 0-100 m/min
Backwards Traverse 0-120 m/min
-

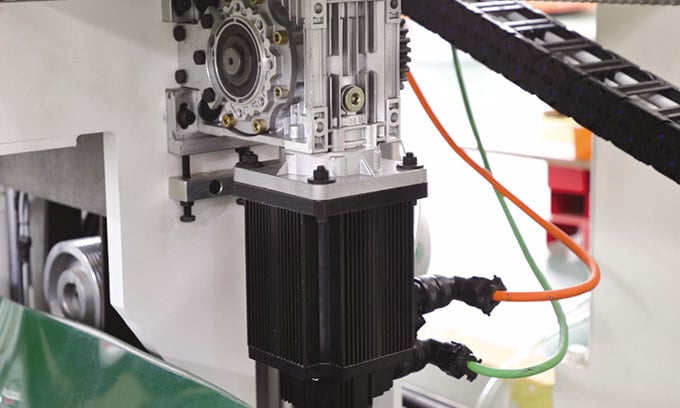

Servo Motors
Saw Carriage 2KW AC Servo
Pusher 2KW AC Servo
-
Machine Dimensions
Length 6560mm
Width 5740mm
Height 2060mm
Weight 5800kg
Working Height 980mm
-
Services
Power 30.15 kw
Air Pressure 5-7 Bar
